KW1000 Insulation Piercing Connector

The KW1000 Insulation Piercing Connector is designed for 1000 kcmil trunk cable and #8 or #6 AWG lead wires in 1500V DC photovoltaic systems. Certified to UL 9703, this field-installed connector supports solar trunk bus and harness cable applications where high conductor capacity, organized wiring, and repeatable installation are important.

KW600 Insulation Piercing Connector | KW750 Insulation Piercing Connector | KW1000 Insulation Piercing Connector

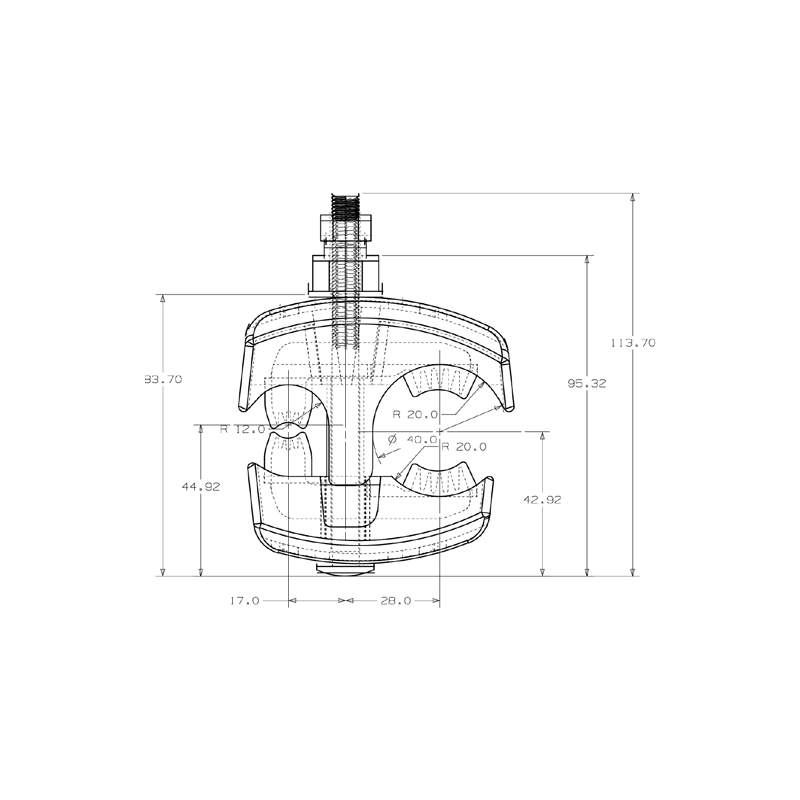

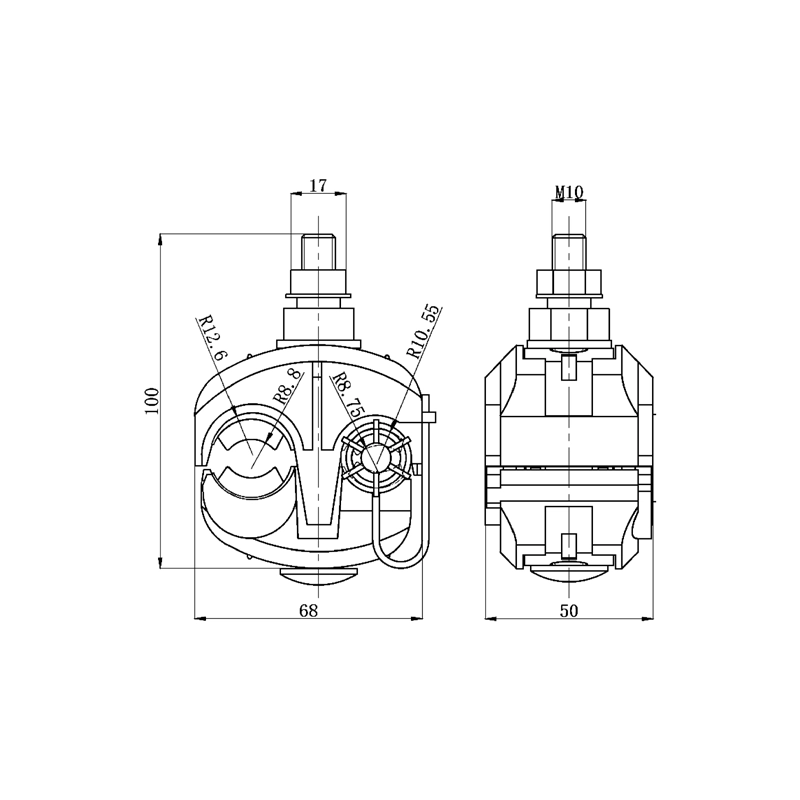

KW1000 Insulation Piercing Connector - Image 2

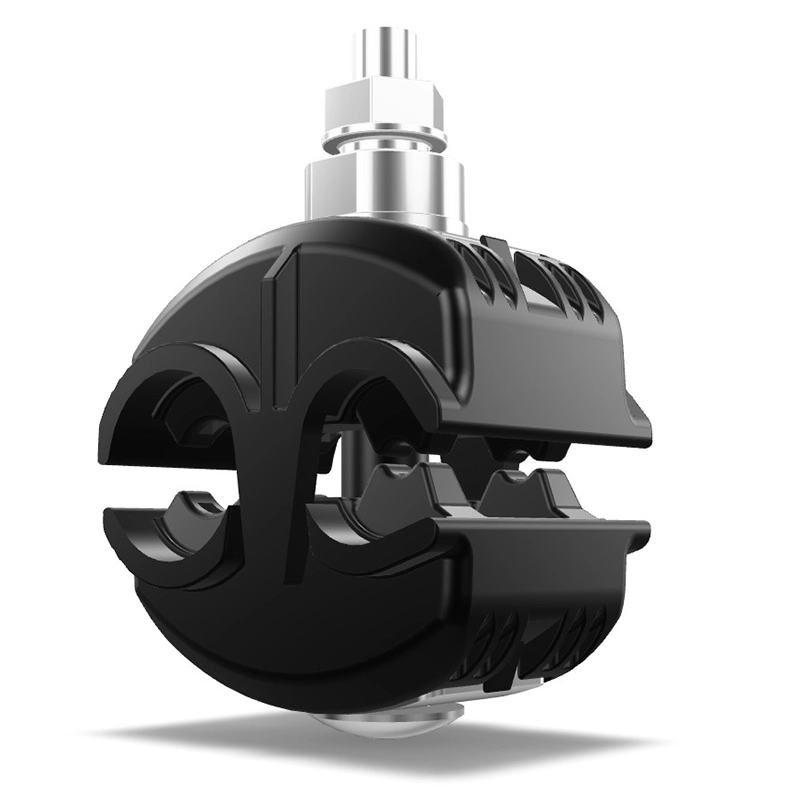

KW1000 Insulation Piercing Connector - Image 3

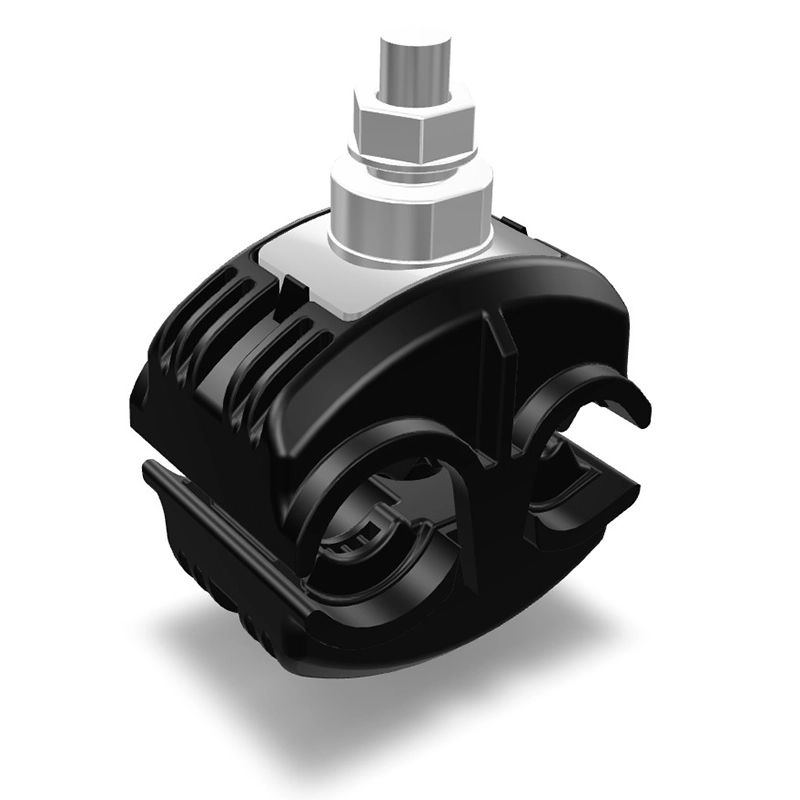

KW1000 Insulation Piercing Connector - Image 4
KW1000 Insulation Piercing Connector - Image 5

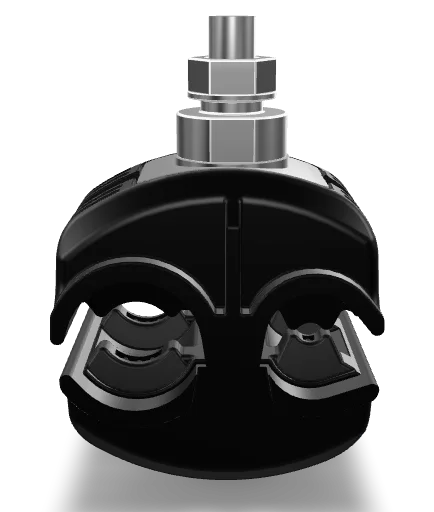

KW1000 Insulation Piercing Connector - Image 6

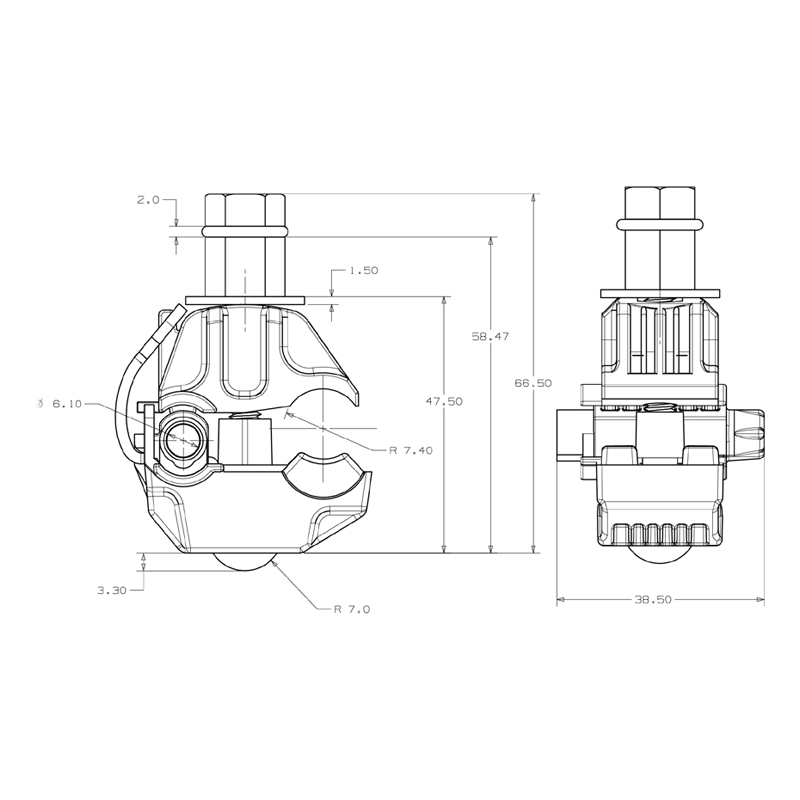

KW1000 Insulation Piercing Connector - Image 7

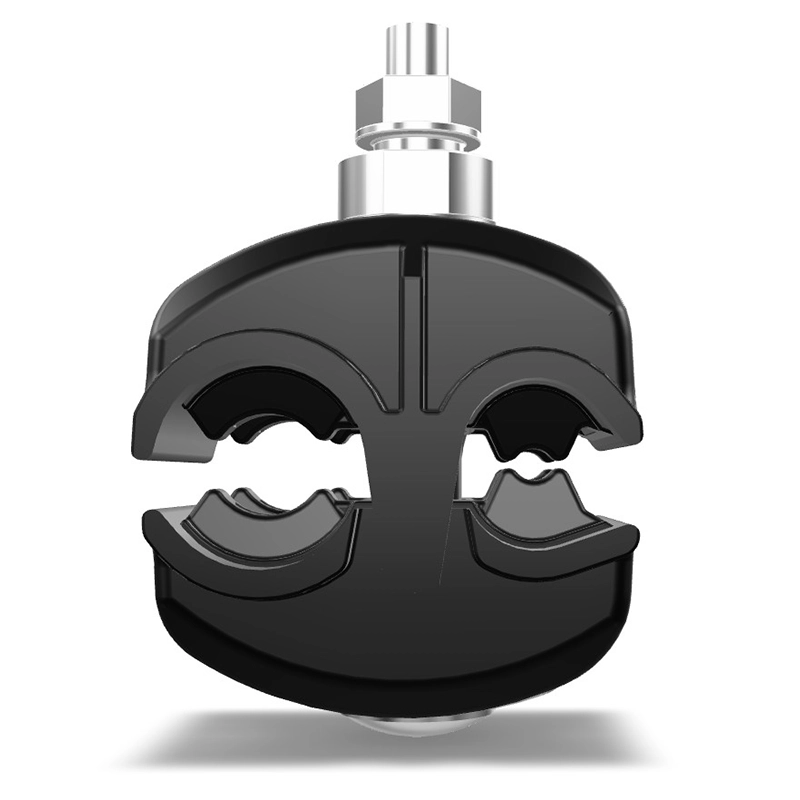

KW1000 Insulation Piercing Connector - Image 8

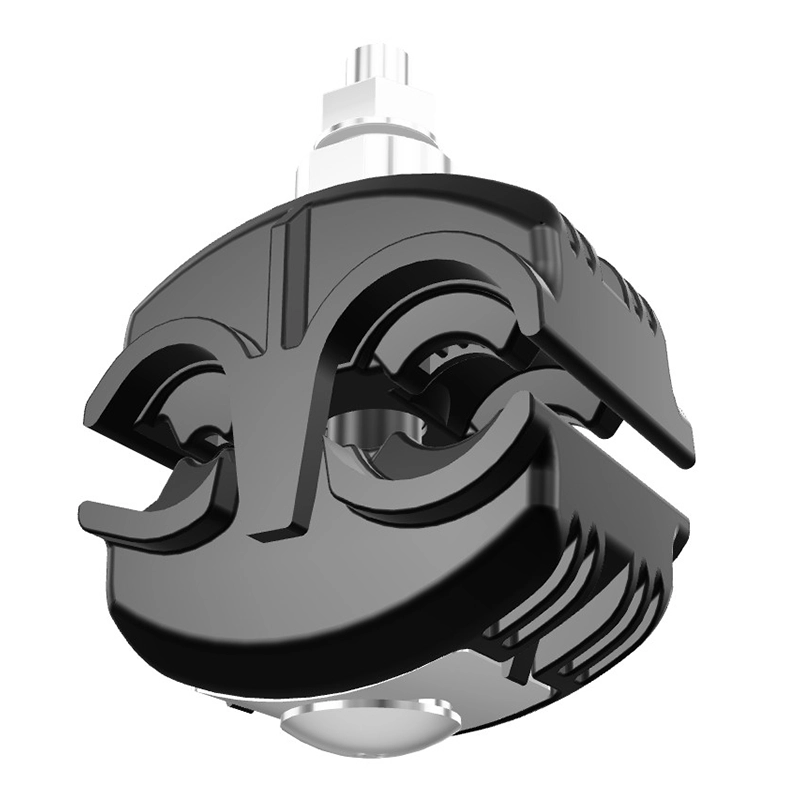

KW1000 Insulation Piercing Connector - Image 9
KW1000 Insulation Piercing Connector - Image 10
KW1000 Insulation Piercing Connector - Image 11

Request a Quote

Interested in this product? Fill out the form below and our team will get back to you.

Contact Form
Categories: , Brand:

Specifications

Model KW1000
Product Code 32KW1000
Product Type Insulation Piercing Connector
Trunk Cable Size 1000 kcmil - PV Rated Cable
Tap Wire Size #8, #6 AWG
Max System Voltage 1500V DC
Maximum Current Trunk Cable 700
Maximum Tap Current 80
Tap Type Dual
Number of Bolts 2
Bolt Size M8 x 100
Torque Value 20 ft-lbs
Weight 20.5 oz
Dimensions 3.62" W x 4.13" D x 4.41" H
Cable Compatibility AL9CU Class 2 stranded PV certified cables per UL4703 type PV
Installation Temperature -28°C to +43°C
Max Operating Temperature 90°C
Material V0-rated body and cover material
Certification UL 9703

Product Details

KW1000 Insulation Piercing Connector

The KW1000 Insulation Piercing Connector is designed for photovoltaic wiring systems that require a dependable field-installed connection between trunk bus cable and lead wire. Built for use with 1000 kcmil trunk cable and compatible with #8 and #6 AWG lead wires, this connector is a practical solution for 1500V DC solar installations that need organized wiring, repeatable connections, and reliable field performance. In utility-scale and large-format PV systems, an insulation piercing connector like the KW1000 helps support cleaner cable routing and a more standardized installation approach across the project.

This KW1000 insulation piercing connector is certified to UL 9703 and rated for 1500V DC photovoltaic applications. It is intended for use with AL9CU Class 2 stranded PV certified cables per UL4703 type PV, making it suitable for solar infrastructure where certified compatibility and dependable operation matter. The connector uses a dual tap configuration with a two-bolt design, and the body and cover are made from V0-rated material for dependable use in demanding PV environments.

Designed for Solar Trunk Bus Systems

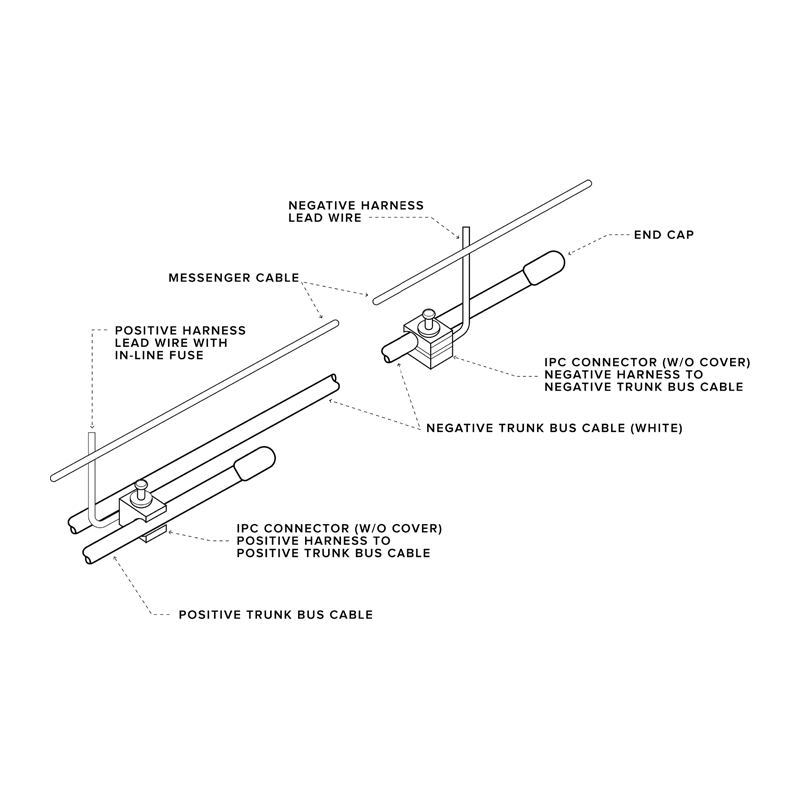

The KW1000 is used in PV systems where trunk bus cable and harness cable need to be connected efficiently in the field. In these layouts, an insulation piercing connector helps create a secure tap connection while reducing the need for more complicated row wiring strategies. This can improve installation consistency and support a more repeatable process for contractors, EPC teams, and solar installers working on larger projects.

Trunk bus style DC wiring can help reduce unnecessary jumper and harness wires, simplify wire management, and create a more uniform installation workflow. The KW1000 fits into that kind of system by providing a field-installed connection point for applications using 1000 kcmil trunk cable. This makes it especially useful in utility-scale solar projects where organized wiring architecture, labor efficiency, and standardized components all contribute to a cleaner and more practical DC design.

Built for 1000 kcmil Trunk Cable and #8 or #6 AWG Lead Wire

The KW1000 is matched for 1000 kcmil trunk cable and supports #8 and #6 AWG lead wires. This cable range makes it a strong choice for photovoltaic connection points where a larger capacity IPC is needed for demanding solar applications. Using the correct insulation piercing connector for the intended conductor size helps support proper fit, secure installation, and dependable electrical continuity in the completed assembly.

In solar systems with repeated connection points across long cable runs, having a connector designed specifically for the required conductor size can improve both field efficiency and installation consistency. The KW1000 gives installers a connector option built for this larger trunk cable range while still fitting into a broader 1500V DC PV system design.

1500V DC Performance with UL 9703 Certification

The KW1000 is rated for 1500V DC, making it suitable for modern photovoltaic system architectures that require high-voltage DC components. It is also UL 9703 certified, which is important for projects where listed components help support permitting, inspection, and compliance requirements. In addition to its voltage rating, the KW1000 supports a maximum current rating of 175 amps and is associated with a 75 amp overcurrent fuse value.

The connector body and cover are made from V0-rated material, which supports dependable use in solar environments where material quality matters. To remain in compliance with listing requirements, the IPC must be installed with the matching cover. That matching cover is an essential part of the complete connector assembly and should always be used according to installation guidelines.

Two-Bolt Design for Larger Conductor Applications

The KW1000 uses a dual tap configuration with two M8 x 100 bolts and a required torque value of 20 ft-lbs per bolt. This two-bolt design helps support secure installation in applications where larger trunk cable is part of the PV design. On larger solar projects, clearly defined hardware and installation values can help crews maintain consistency and quality from one connection point to the next.

A connector like the KW1000 is well suited for solar projects that benefit from standardized field processes and repeatable installation methods. When used correctly in trunk bus systems, it can help reduce variation in the field, support organized wire management, and contribute to a more efficient DC wiring layout. That makes it a practical option for teams looking to streamline installation without sacrificing certified performance.

Built for Utility-Scale and Large PV Installations

The KW1000 offers a larger cable capacity than the smaller IPC models while remaining part of the same product family. Its design makes it a practical insulation piercing connector for solar applications where 1000 kcmil cable is part of the system design and a field-ready connector is needed for repeatable installation. This allows it to fit into photovoltaic projects that require both conductor-specific compatibility and dependable performance in demanding solar environments.

Because it belongs to a broader family of IPC products intended for PV systems, the KW1000 can be used as part of a more consistent product strategy across multiple conductor sizes. That is especially useful for projects that want uniform certification standards, similar installation methods, and a more organized DC wiring system overall.

Common Uses for the KW1000 Insulation Piercing Connector

  • PV trunk bus cable to harness cable connections
  • 1500V DC solar electrical systems
  • Field-installed cable connection points in utility-scale PV layouts
  • Standardized trunk bus wiring designs for solar projects
  • Applications requiring a UL 9703 certified insulation piercing connector

The KW1000 Insulation Piercing Connector is a strong choice for photovoltaic systems that need a certified and field-ready IPC for 1000 kcmil trunk cable and #8 or #6 AWG lead wire. With 1500V DC performance, UL 9703 certification, and a design intended for repeatable field installation, it fits well into solar projects that prioritize organized wiring, dependable electrical connections, and practical installation efficiency.

IPC Connectors Products

Product Model Product Code Product Type Trunk Cable Size Tap Wire Size Max System Voltage Maximum Current Trunk Cable Maximum Tap Current Tap Type Number of Bolts Bolt Size Torque Value Weight Dimensions Cable Compatibility Material Installation Temperature Max Operating Temperature Certification
KW10 Insulation Piercing Connector KW10 32KW10 Insulation Piercing Connector 1/0 AWG - PV Rated Cable #10, #8 AWG 1500V DC 175 40 Single 1 M6 x 60 10 ft-lbs 5 oz 2.63" W x 3.38" D x 2.87" H AL9CU Class 2 stranded PV certified cables per UL4703 type PV V0-rated body and cover material -28°C to +43°C 90°C UL 9703
KW40 Insulation Piercing Connector KW40 32KW40 Insulation Piercing Connector 4/0 AWG - PV Rated Cable #10, #8 AWG 1500V DC 270 40 Single 1 M6 x 60 10 ft-lbs 5 oz 2.63" W x 3.38" D x 2.87" H AL9CU Class 2 stranded PV certified cables per UL4703 type PV V0-rated body and cover material -28°C to +43°C 90°C UL 9703
KW350 Insulation Piercing Connector KW350 32KW350 Insulation Piercing Connector 350 kcmil - PV Rated Cable #8, #6 AWG 1500V DC 338 80 Dual 1 M6 x 60 10 ft-lbs 5 oz 2.63" W x 3.38" D x 2.87" H AL9CU Class 2 stranded PV certified cables per UL4703 type PV V0-rated body and cover material -28°C to +43°C 90°C UL 9703
KW500 Insulation Piercing Connector KW500 32KW500 Insulation Piercing Connector 500 kcmil - PV Rated Cable #8, #6 AWG 1500V DC 414 80 Dual 1 M10 x 100 25 ft-lbs 14.1 oz 3.15" W x 4.30" D x 4.52" H AL9CU Class 2 stranded PV certified cables per UL4703 type PV V0-rated body and cover material -28°C to +43°C 90°C UL 9703
KW600 Insulation Piercing Connector KW600 32KW600 Insulation Piercing Connector 600 kcmil - PV Rated Cable #8, #6 AWG 1500V DC 467 80 Dual 2 M8 x 100 20 ft-lbs 20.5 oz 3.62" W x 4.13" D x 4.41" H AL9CU Class 2 stranded PV certified cables per UL4703 type PV V0-rated body and cover material -28°C to +43°C 90°C UL 9703
KW750 Insulation Piercing Connector KW750 32KW750 Insulation Piercing Connector 750 kcmil - PV Rated Cable #8, #6 AWG 1500V DC 550 80 Dual 2 M8 x 100 20 ft-lbs 20.5 oz 3.62" W x 4.13" D x 4.41" H AL9CU Class 2 stranded PV certified cables per UL4703 type PV V0-rated body and cover material -28°C to +43°C 90°C UL 9703
KW1000 Insulation Piercing Connector KW1000 32KW1000 Insulation Piercing Connector 1000 kcmil - PV Rated Cable #8, #6 AWG 1500V DC 700 80 Dual 2 M8 x 100 20 ft-lbs 20.5 oz 3.62" W x 4.13" D x 4.41" H AL9CU Class 2 stranded PV certified cables per UL4703 type PV V0-rated body and cover material -28°C to +43°C 90°C UL 9703
