SCC-1004 Splice Connector Cover

SCC-1004 Splice Connector Cover

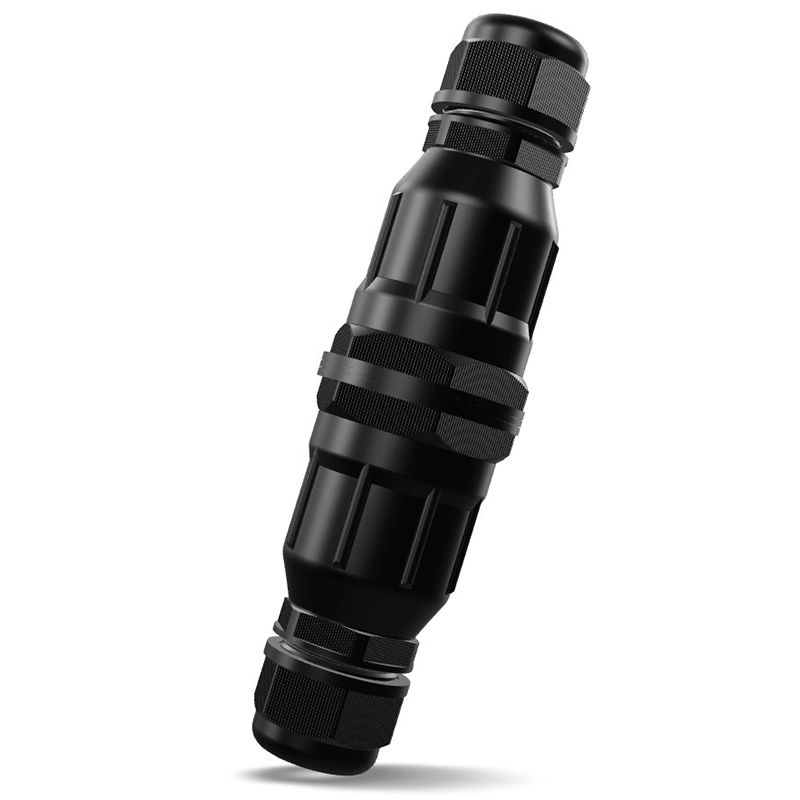

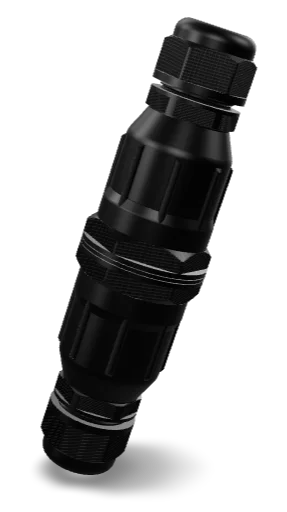

The SCC-1004 Splice Connector Cover is designed to insulate and seal splice connections in photovoltaic electrical systems. Built for use with 1/0 to 4/0 cable sizes, this splice cover provides a practical solution for protecting inline splice points in 1500V DC solar applications. In PV installations where conductors need to be joined and properly insulated, a splice connector cover like the SCC-1004 helps create a protected connection point while supporting organized and code-conscious installation practices.

This SCC-1004 Splice Connector Cover is certified to UL 9703:2018 and carries certification number TU 722290012 01. It is also rated IP68 for dust and water protection per IEC 60529, making it well suited for solar and outdoor electrical environments where dependable sealing is important. In systems exposed to weather, dust, and demanding site conditions, a properly selected splice cover helps protect the splice area while supporting long-term performance and installation reliability.

Designed to Insulate and Protect Splice Connections

The primary purpose of the SCC-1004 Splice Connector Cover is to insulate and seal an inline splice connection. In photovoltaic systems, splice points need dependable protection to help maintain a clean installation and reduce exposure at the connection area. A splice cover helps enclose the splice while providing a more finished and protected connection point within the wiring layout.

In large-format and utility-scale PV systems, both cable management and environmental protection are important parts of overall system design. The SCC-1004 supports those needs by giving installers a dedicated component for covering compatible splice connections in a controlled and repeatable way. This can help improve jobsite consistency and support a more uniform installation standard across the project.

Built for 1/0 to 4/0 Cable Sizes

The SCC-1004 Splice Connector Cover is intended for 1/0 to 4/0 cable sizes and supports cable outer diameters from 12.5 mm to 18 mm. This makes it a practical choice for solar electrical applications where that conductor range is part of the system design. Matching the correct splice connector cover to the intended cable size is important for achieving proper fit, reliable sealing, and dependable insulation in the completed installation.

Because photovoltaic installations often include repeated splice points across long runs and multiple system sections, using the right splice cover for the cable diameter helps support consistency in the field. The SCC-1004 gives installers a product that is purpose-built for this cable range while fitting into a broader 1500V DC photovoltaic system design.

Compatible with UL 486 Certified Splice Connectors

The SCC-1004 is compatible with shear bolt or crimp splice connectors certified to UL 486. This makes it a useful part of a solar electrical system where approved splice hardware is already being used and the splice point needs dependable insulation and sealing. Using a compatible splice connector cover helps support a more complete and protected finished assembly.

In the field, splice protection is not just about covering the connection. It is also about using components that work together properly within the overall system. The SCC-1004 helps installers build a more dependable splice assembly by pairing with compatible splice connector types that meet established certification requirements.

1500V DC Performance with UL 9703 and IP68 Protection

The SCC-1004 is rated for 1500V DC, making it suitable for modern photovoltaic system architectures that require high-voltage DC components and accessories. It is also UL 9703 certified, which is important for projects where listed products support permitting, inspection, and compliance requirements. In addition to its certification, the SCC-1004 is IP68 rated, helping provide strong protection against dust and water ingress in demanding electrical environments.

This combination of voltage rating, certification, and ingress protection makes the SCC-1004 a strong fit for solar applications where splice points must be properly insulated and sealed. In outdoor PV environments, environmental protection is a major part of product selection, and a splice cover with a recognized protection rating helps support dependable performance in the field.

Reliable Installation for Solar Electrical Systems

The SCC-1004 Splice Connector Cover has an installation torque requirement of 58 to 60 inch-lbs. Following the correct installation guidelines and torque values helps support a secure fit and proper sealing performance in the completed assembly. On larger solar projects, clearly defined installation values can help crews maintain consistency and quality from one splice point to the next.

In standardized PV installation workflows, components that are built for repeatable use can help reduce variation across the site. The SCC-1004 is well suited for solar projects that need a dependable splice cover for compatible cable sizes while maintaining organized wire management and consistent installation practices.

Practical for Utility-Scale and Commercial PV Applications

The SCC-1004 Splice Connector Cover is a practical solution for photovoltaic systems that require reliable protection of splice connections within this cable range. Its compact form and cable compatibility make it well suited for solar electrical layouts where proper insulation and sealing of inline splices are necessary for system protection and installation quality. This makes it useful in utility-scale, commercial, and other large-format PV applications where standardized components help streamline field work.

Because it belongs to a broader family of splice covers and related accessories, the SCC-1004 can be used as part of a more consistent product strategy across multiple conductor sizes. That is especially useful for projects that want similar certification standards, protection ratings, and installation approaches throughout the DC wiring system.

Common Uses for the SCC-1004 Splice Connector Cover

• Insulating inline splice connections in PV cable runs
• Sealing splice points in 1500V DC solar systems
• Providing environmental protection for electrical splices
• Supporting organized cable management in photovoltaic installations
• Applications requiring a UL 9703 certified and IP68 rated splice cover

The SCC-1004 Splice Connector Cover is a strong choice for photovoltaic systems that need a certified and field-ready solution for insulating and sealing splice connections for 1/0 to 4/0 cable. With 1500V DC performance, UL 9703 certification, and IP68 environmental protection, it fits well into solar projects that prioritize dependable splice protection, organized wiring, and repeatable installation quality.
